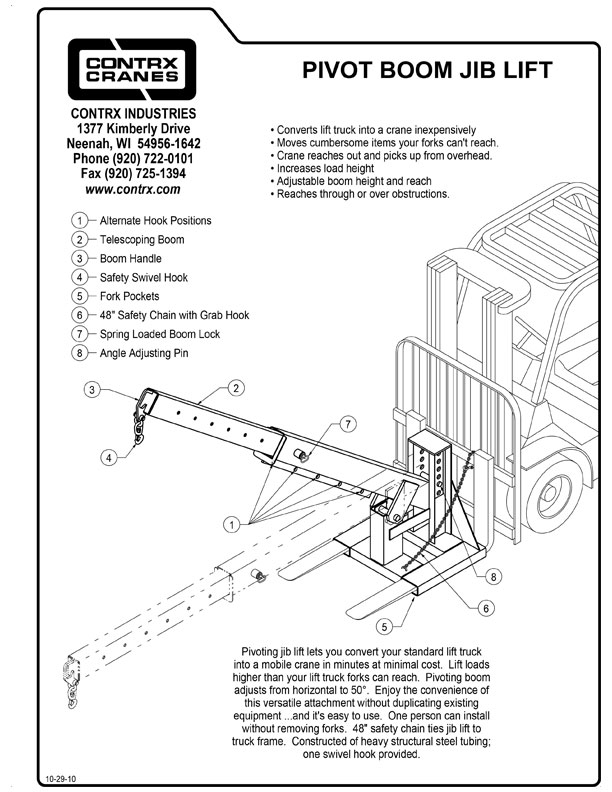

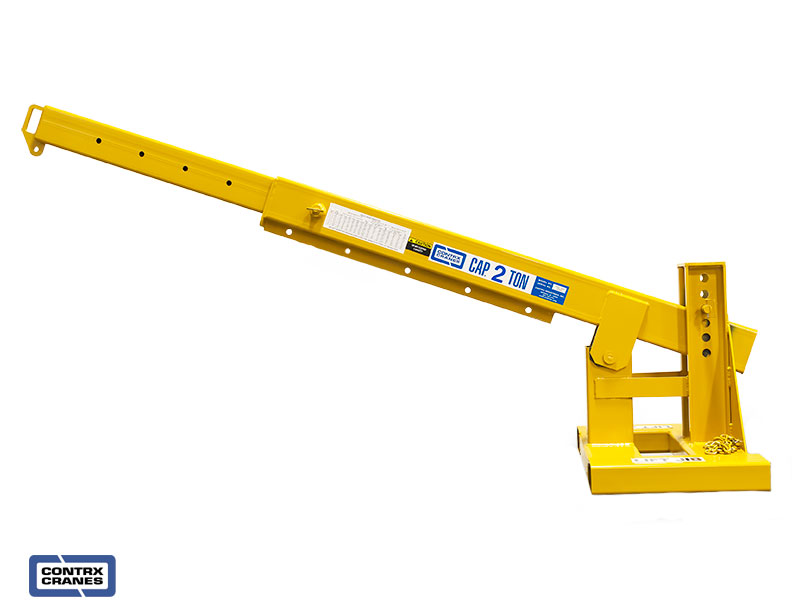

Jib Lifts Pivot Boom

Jib Lifts Pivot Boom

Converts lift truck into crane – inexpensively
Crane reaches out to pick from overhead
Capable to reach through or over obstructions
High under-clearances and bulky load handling
Adjustable boom height and reach
Increases load height
Alternate hook positions
Safety swivel hook
48” Safety chain and grab hook
Spring loaded boom lock
Angle adjusting pin
Structural steel tube construction

2 ton, 3 ton and 4 ton capacities
Center-on-fork widths from 24” up to 48”
Handles fork pocket sizes; 2-1/2” x 5-1/2” and 3-1/2” x 7-1/2”
Custom sizes available

Please contact Contrx Cranes to inquire about accessories. 920-722-0101

Telescoping Jib Lift Specifications Chart (114 KB): Download

Pivot Boom Specs: Download

SINGLE HOOK CAPACITIES
Hook Position	Hook Position (inches)	4000 Pound Capacity	6000 Pound Capacity	8000 Pound Capacity
A	34	4000	6000	8000
B	44	4000	6000	8000
C	54	4000	6000	8000
D	64	4000	6000	8000
E	74	4000	6000	8000
1	80	4000	6000	8000
2	87-1/2	3535	5302	6974
3	95	3167	4750	6182
4	102-1/2	2868	4302	5551
5	110	2621	3931	5037
6	117-1/2	2413	3619	4610
7	125	2235	3353	4250
8	132-1/2	2082	3123	3942
9	140	1949	2923	3676
